Electromagnetic Hammer

Electromagnetic hammer ® It is a kind of striking equipment that uses electromagnetic force to make the hammer move back and forth at high speed, thus bringing huge impact force to the struck object and generating vibration. It is mainly used in powder conveying pipes, silos and powder processing equipment to prevent powder blockage by striking and vibrating.
■ Characteristic
1 .No compressed air required。                     2 .The striking force is easy to adjust。
3 .The interval time is adjustable。                  4 .Can hit continuously (1-10 times)。
5 .Continuous strike is the best for preventing blocking。  6 .Completely enclosed structure, it can also be used in high dust environment.
7 .Uniform strike force and strong durability。 8 .Use special control cabinet to achieve full automatic control。
9 .It can be used in conjunction with other equipment。


Host parameters


For reference: In addition to the standard type, we can also provide high temperature resistant type (service temperature 100℃), all stainless steel type,
direct hit type, pressure proof explosion-proof type, CE certified type, etc.It is equipped with a special base, a set of screws and nuts for installation,
 and a conductor (5m) between the main machine and the control cabinet

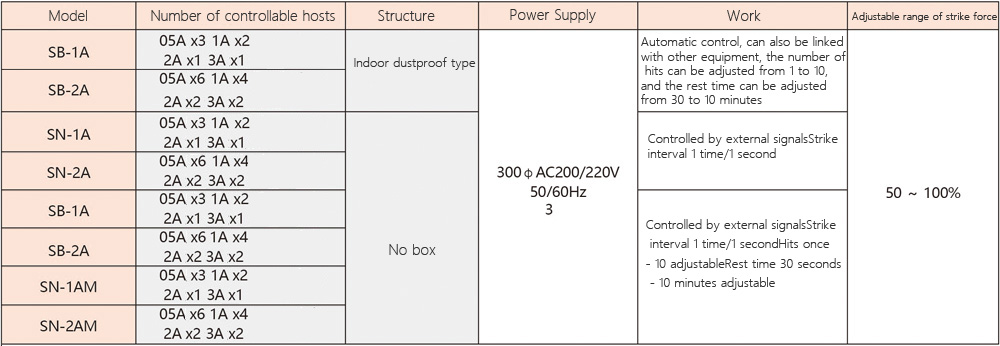

Control cabinet parameters

For reference: The control cabinet can also be made into an outdoor waterproof and dust-proof type or a built-in transformer type as required

■ Model selection of electromagnetic hammer

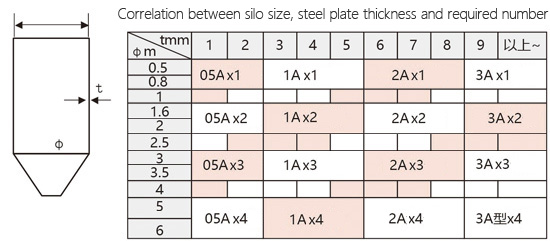

Different models and quantities of electromagnetic hammers are required according to the shape of the silo, the blockage of materials and the physical properties of materials. Generally, the model and quantity of the electromagnetic hammer can be simply calculated according to the size of the silo and the thickness of the steel plate in the right figure and table. Since the striking force of the electromagnetic hammer can be adjusted, the slightly larger model shall be selected as the principle when selecting the model.

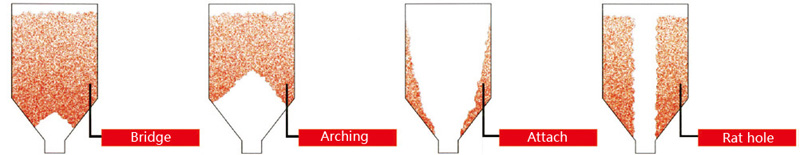

■ Material blockage and attachment
